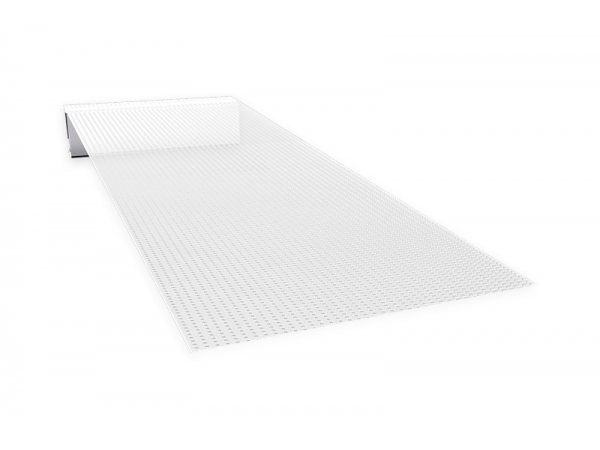

    P8 LED Crystal Film Screen

    Describe

    Model: P8
    Pixel spacing: 8 * 8mm
    Pixel count: 15625 points per square meter
    Lamp bead specification: smd2121 (integrated lamp driver)
    Module size: 1000 * 240mm
    Module resolution: 125 * 30
    Brightness (cd/㎡): ≥ 4000cd/㎡
    Weight: ≤ 3.5kg/m2



    Product Details

    1. High transparency, LED film screen has high transparency, and the substrate is high-temperature resistant PET film. When the screen stops working, it completely merges into the glass;
    2. Ultra lightweight, with a thickness of only 3mm and a weight as light as 3.5kg/㎡;
    3. Flexible, LED film screen with strong flexibility, can be attached to curved glass buildings;
    4. Customizable, supports arbitrary cropping, not limited by size or shape, meets different size requirements, and achieves more creative displays;
    5. Wide viewing angle, 140 ° at each angle, no blind spots or color cast, every side is exciting;
    6. Safe and beautiful, with no components on the screen, hidden power supply, safe and reliable;
    7. Quick installation, simple and fast, can be directly pasted on the surface of glass;

    Parameter

    Product specification

    P8

    Pixel pitch

    8mm*8mmx*y

    Pixel

    15625 points/m2

    LED specification

    SMD2121 (light drive in one)

    Pixel composition

    1R1G1B

    Module Size

    1000mm*240mm

    Module Resolution

    125*30

    Pixel resolution

    125*125/

    Permeability

    ≥85%

    Box wiring mode

    Internal wiring (clean back)

    Weight

    ≤ 3.5KG/m2

    White balance brightness

    ≥4000cd/

    Peak power consumption

    800 W/

    Average power consumption

    About 240 W/ (depending on the video source)

    Refresh frequency

    ≥3840s

    Grayscale level

    16Bit

    Brightness control level

    Grade 0-255

    Color temperature

    3200K-8500K (adjustable)

    Frame change frequency

    ≥60Hz

    Viewing angle

    H-H140 degrees V-V140 degrees

    Input signal

    DVI  VGA, composite video

    Control screen mode

    Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)

    Protection grade

    IP30

    Power supply requirements

    AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)

    working temperature

    -20~50

    Theoretical service life

    100000 hours
