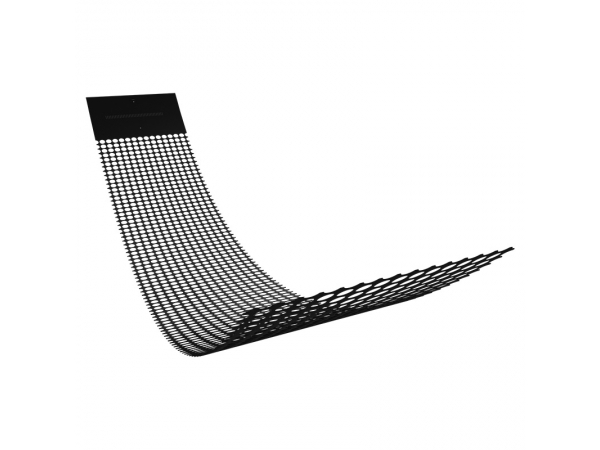

P3.91 LED Holographic Screen

Describe

Model: J3 glass mounting
Pixel spacing: 3.91 * 3.91mm
Sensory transparency: 90%
Pixel density: 65536 dots per square meter
Box size: 1000 * 250/1500 * 250
Box resolution: 256 * 64/384 * 64
Weight: 6kg/㎡
Brightness: ≥ 5000cd/㎡

Product Details：

1. Flexible And Customizable To Adapt To Various Complex And Irregular Scenes
2. Ultra Light And Ultra-Thin Front And Back Mounting On Glass, Minimalist Installation And Maintenance
3. Tangible, Invisible, Intangible, High-Definition Picture Quality Brought By 90% Transparency And 9000:1 Contrast Ratio In One Mirror To The Bottom
4. One Piece Machine 1 * 1m, 2 * 2m, 1 * 2m Can Be Freely Spliced Without Restrictions
5. 90% High Transmittance, Almost Unobstructed Lighting
6. High Brightness 5000cd/M2, With Bright Colors Even Under Direct Sunlight

Application Scope：

Commercial Complex
Glass Curtain Wall, Atrium, Glass Guardrail, Glass Showcase, Sightseeing Elevator, Curtain Wall, Etc
Brand Chain
Tea And Catering, Baking, Shoe And Clothing Jewelry Stores, 3c Experience Stores, Bank Branches
Advertising Media
Airport, High-Speed Rail, Subway, Bus And Other Transportation Hub Stations
Performing Arts And Stage Design
Bar And Nightclub, Stage And Stage Design, Variety Shows, Cultural And Tourism Landscapes

Parameter

LED全息屏P3.91产品技术参数
项目	单位	参数
像素点间距	mm	水平3.91mm 垂直3.91mm
像素构成	组	SMD黑灯1717灯驱一体封装
分辨率	点/m²	65536
单元箱体尺寸	mm	1000mm250mm/1500250mm
屏幕亮度	cd /m²	3000cd/1500cd
单元箱体重量	kg/个	1.5kg
箱体重量	kg /m²	6kg
箱体厚度	mm	65
通透率	%	92
最大功率/平均功率	w/m²	800/200
灰度等级	bit	16
对比度		9000：1
色温	K	6500-9300K
亮度调整	级	256
大屏幕水平视角/垂直视角	度°	≥140/≥120
最佳视距	m	10-3000
刷新频率	hz	≥3840
控制方式		同异步控制
控制距离		100米(网线无中继) 500米(多模光纤) 10千米(单模光纤)
驱动方式		恒流静态
显示模式		1920*1080
设计寿命		≥100000小时
散热方式		结构强化自然对流（不用空调和风扇）
工作/储存温度		-20°c ~+60°c / -55°c ~+100°c
工作湿度	RH	10-90%
安装形式		背面贴装或者固定安装
拆装速度		快速拆装
维护方式		前后安装维护
