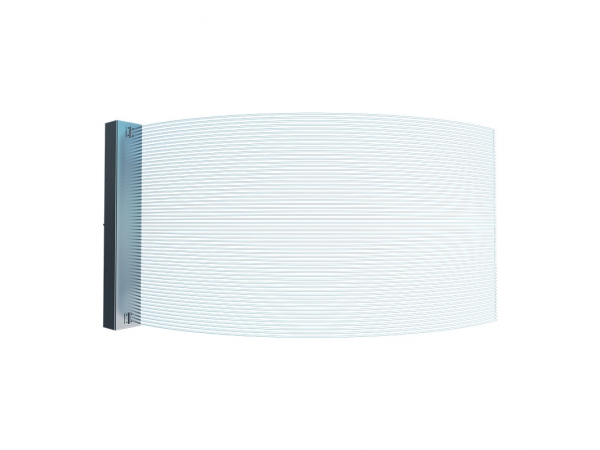

P10 LED Film Screen
Describe
Model: P10
Density: 10000dot/㎡
Module size: 1000 (H) * 320 (W) mm
Screen composition: high transparency, high temperature resistance, flame retardant PC
Transparency rate: 80%
Brightness: ≥ 4500cd/㎡
Protection level: IP61
Product Details：
1. Thin And Light
The Screen Is Lightweight And Has No Pressure On The Glass,
Thickness: About 4mm, Weight 3-6kg/Square Meter
2. Transparent
The Structure Is Exceptionally Simple, With High Transparency, Which Does Not Affect The Lighting Of The Glass Curtain Wall, And The Transparency Is Over 85%
3. High Flexibility
The Maximum Single Box Size Can Reach 960mm * 1500mm, And The Brightness Can Reach Over 4500cd/㎡
The Maximum Length Of A Single Piece Of Glass Is 3 Meters, With No Power Box In The Middle.
Flexible And Cutting, Not Limited By Size, Can Be Flexibly Designed According To Customer Needs, With Strong Flexibility.
4. Lightweight In Size
Easy To Install, No Need For Complex Installation Structures
5. Wide Perspective
Up To 140 Degrees In Vertical, Horizontal, Left, And Right Views, With No Blind Spots Or Color Cast, The Image Is Always Perfect And Seamless
6. Cost Savings
Product Installation Does Not Require Additional Steel Frame Structures Or Changes To The Appearance Of Ancillary Buildings, Effectively Reducing Transportation And Installation Costs
Application Scope：
Commercial Complex
Glass Curtain Wall, Atrium, Glass Guardrail, Glass Showcase, Sightseeing Elevator, Curtain Wall, Etc
Brand Chain
Tea And Catering, Baking, Shoe And Clothing Jewelry Stores, 3c Experience Stores, Bank Branches
Advertising Media
Airport, High-Speed Rail, Subway, Bus And Other Transportation Hub Stations
Performing Arts And Stage Design
Bar And Nightclub, Stage And Stage Design, Variety Shows, Cultural And Tourism Landscapes
Parameter
|
产品型号 |
贴膜屏P10 |
|
像素间距 |
10mm |
|
像素密度 |
10000点/㎡ |
|
像素组成 |
一纯红管一纯绿管一纯蓝管 |
|
显示厚度 |
4mm |
|
LED发光管 |
SMD2121/SMD1717 |
|
驱动IC |
灯驱合一（定制） |
|
模组尺寸/箱体尺寸 |
模组1000MM*80MM；箱体1000MM*320MM/1000MM*640MM |
|
功耗 |
平均：260W/㎡，最大：700W/㎡ |
|
屏体重量 |
小于5kg/㎡ |
|
电源 |
原驰400W（带PFC） |
|
接插件 |
铜材质 |
|
电线电缆 |
国标多芯线材，通过认证 |
|
PCB板 |
国际A料 |
|
屏体透明度 |
80% |
|
防护等级 |
IP61 |
|
平整度 |
模块间拼缝<0.1mm |
|
平均寿命 |
大于10万使用小时 |
|
失控点 |
小于万分之一（连续使用时） |
|
供电要求 |
220V±10%；AC50HZ，三相五线 |
|
连续工作时间 |
大于72小时 |
|
质保期 |
壹年 |
|
屏幕亮度 |
4500cd/m² |
|
可视距离 |
10m～100m距离观看时图像清晰可见 |
|
发光元器件 |
国星、德合 |
|
亮度调节 |
根据环境亮度自动调节和手动调节，大于等于256级 |
|
视角 |
水平140，垂直140 |
|
灰度等级 |
65536级灰度 |
|
白场色温 |
5500K-9300K |
|
图像调节 |
白平衡、对比度、视觉、色调调节 |
|
图像处理 |
图像有降噪、增强、运动补偿、色坐标变换处理 |
|
驱动方式 |
恒流驱动 |
|
扫描方式 |
静态 |
|
对地漏电流 |
小于2毫安 |
|
信号处理能力 |
大于10bit |
|
亮度均匀性 |
整屏单色最亮时，最低像素亮度/最高像素亮度大于0.95 |
|
衰减率 |
2年低于0.05% |
|
对比度 |
2000：1 |
|
刷新频率 |
3840HZ |
|
换帧频率 |
大于60HZ |
|
视频输入 |
兼容PAL\NTSC电视信号,兼容HDTV和SDTV |
|
软件接口 |
WINDOWS7、NT、XP、2000 |
|
显示模式 |
32位真彩色1024X768 |
|
平均无故障工作时间 |
大于10000小时 |
|
灯珠坏点率 |
小于万分之一，且呈离散分布 |
|
控制系统 |
卡莱特、摩西尔、诺瓦同步/异步 |
|
使用环镜 |
◆工作环境：-10～+65 ℃/ 10～90 %RH |
|
认证 |
3C |
|
安装方式 |
贴装，吊装，固装，支持任意尺寸裁剪，弯曲。 |
