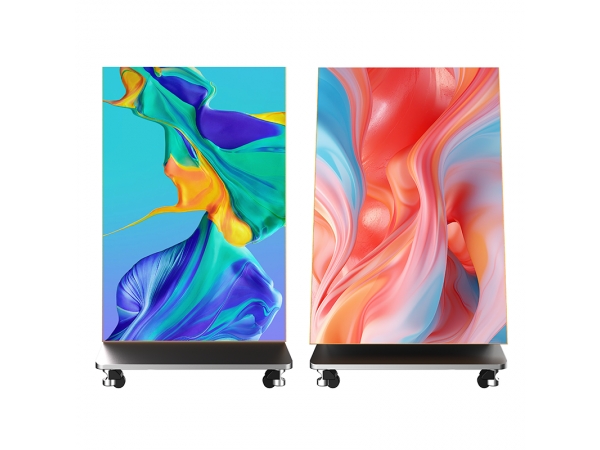

    Folding Electronic Poster Screen (Silver Version)

    Describe

    高度(height):1090mm / 宽度(width):646mm / 厚度(thickness):90mm


    Product Features:

    With 20 Years Of Industry Experience, We Always Put Users At The Center And Deeply Explore And Solve The Pain Points Of Users In The Use Of Led Displays Through Extensive User Feedback And Market Research. For Example, In Response To The Difficulties Of Traditional Led Display Installation, Complex Program Debugging, And Inconvenient Transportation, The Foldable Led Electronic Poster Screen Was First Launched In 2024, Which Has Won High Recognition From Users And The Industry.

    ◆ Patent Products, Exclusive Technology.
    ◆ Support Mobile Batteries, Iron Phosphate Rate, High Safety, Long Endurance, Charging Block, Battery Repeated From Point To Point ≥ 3000 Times.
    ◆ Supports Folding, Small Size, Easy Storage, Convenient Transportation, Truly Solving Problems Such As Inconvenient Carrying And Expensive International Postage.
    ◆ Private Mold Design, Exquisite Appearance, The Body Is Made Of Aviation Aluminum Material, With Good Heat Dissipation Effect, 39mm Ultra-Thin Body, 43kg Ultra Light Body.
    ◆ No Need For Professional Technicians To Install, Can Be Used With Power On.
    The App Wirelessly Publishes Content, With Convenient Operation And One Piece Transmission Of Content.
    Quick Lock Design, Easy For Beginners To Control, Supports Seamless Splicing Of Multiple Devices Quickly.
    ◆ Supports Synchronization And Asynchrony, Can Be Used For High-Definition Electronic Posters, As Well As Synchronously Displaying High-Definition Promotional Videos, Conference Ppts, Live Streaming Backgrounds, Etc., With A Wide Range Of Applications.
    The Smd Lamp Beads Adopt The "Tile Level" Gob Process, Which Is Scratch Resistant, Anti Drop, Surface Splash Resistant, Moisture-Proof, And More Stable To Use.
    Equipped With 4 Swivel Wheels, Easy To Move And Place Wherever You Want.


    Parameter

    名称Name 项目Project HB-X2.5 HB-X1.86 HB-X1.53 HB-X1.25
    显示模块参数
    Display module
    parameters
    像素点间距Pixel spacing 2.5mm 1.86mm 1.538mm 1.25mm
    像素构造Pixel construction 表贴三合一LED 表贴三合一LED 表贴三合一LED 表贴三合一LED
    模组分辨率Resolution ratio 128*(h)64点 172*(h)86点 204*(h)104点 256*(h)128点
    模组尺寸Module Size (w)320*(h)160mm (w)320*(h)160mm (w)320*(h)160mm (w)320*(h)160mm
    防护工艺Protective technology GOB GOB GOB GOB
    模组重量Module weight 0.55kg 0.55kg 0.55kg 0.55kg
    整机组成
    Whole machine
    composition

    整机模组组成
    Whole machine module composition W*H
    (w)2*(H)12张 (w)2*(H)12张 (w)2*(H)12张 (w)2*(H)12张
    整机分辨率
    Overall resolution W*H
    (w)256*(H)768px (w)344*(H)1032px (w)416*(H)1248px (w)512*(H)1536px
    显示尺寸Display Size 640*1920mm 640*1920mm 640*1920mm 640*1920mm
    外观尺寸Dimension 646*2050mm 646*2050mm 646*2050mm 646*2050mm
    整机重量
    Gross weight of the machine
    43kg 43kg 43kg 43kg
    光学参数
    Optical
    parameters
    平整度Flatness tolerance 0.5mm 0.5mm 0.5mm 0.5mm
    白平衡亮度White balanced brightness 650CD 650CD 650CD 650CD
    灰度等级Gray scale 14-16BT可调 14-16BT可调 14-16BT可调 14-16BT可调
    色温Color temperature 3200-9000可调 3200-9000可调 3200-9000可调 3200-9000可调
    最佳视距离Best visual distance 3-20M 3-20M 3-20M 3-20M
    视角(水平)Perspective (horizontal) 160° 160° 160° 160°
    视角(垂直)Perspective (vertical) 160° 160° 160° 160°
    发光点中心距偏差
    Tolerance of centerto center
    distance of luminous point
    ≤3% ≤3% ≤3% ≤3%
    亮度均匀性luminance uniformity ≥95 ≥95 ≥95 ≥95
    色度均匀性Chromaticity uniformity ±0.003Cx,Cy之内 ±0.003Cx,Cy之内 ±0.003Cx,Cy之内 ±0.003Cx,Cy之内
    对比度contrast ratio 8000:1 8000:1 8000:1 8000:1
    通电要求
    Power on
    requirements
    供电要求
    Power supply requirements
    110-240V 110-240V 110-240V 110-240V
    峰值功耗Peak power consumption 430W 450W 550W 650W
    平均功耗Average Power 145W 150W 185W 220W
    通讯参数
    Communication
    parameters
    同步/异步Synchronous/Asynchronous 支持support

    通讯方式
    Communication method

    APP/U盘/网口/4G远程APP/USB
    drive/Ethernet port/4G remote
    通讯接口Interface JS485*1 WIFI*1 U盘*1 HDMI*2
    扬声器
    Speaker
    是否内置扬声器
    Is there a built-in speaker
    50*12mm*2PCS
    音频接口
    audio
    3.5音频接口/支持外接功放
    3.5 Audio Interface/Supports ExternalAmplifier
    性能处理
    Performance
    processing
    驱动方式Drive mode 恒流驱动Constant current drive
    换帧频率Frame Frequency 60HZ
    刷新率Refresh rate ≥3840HZ
    使用参数
    Using
    parameters
    寿命典型值Typical lifespan values 50000H
    工作温度范围Working temperature range -40-50℃
    工作湿度范围Operating humidityrange 10-80%无结露
    存储温度范围StorageTemperature Range -50-50RH
    存储湿度范围Storage humidity range 10-85%RH无结露
